● 与现有的激光工艺相比，通过应用双光束激光提高生产性/焊接性
● 应用ATC（自动换刀）功能，可实现各种类型的稳定生产
● 快速更换治具，可以对应多品种生产
● 与其他工艺相比，由于治具生产成本低，因此提高了生产效率
● 使用实时焊接温度测量来检查焊接质量，可以判断产品良/不良
● 可构建MES(Manufacturing Execution System )功能

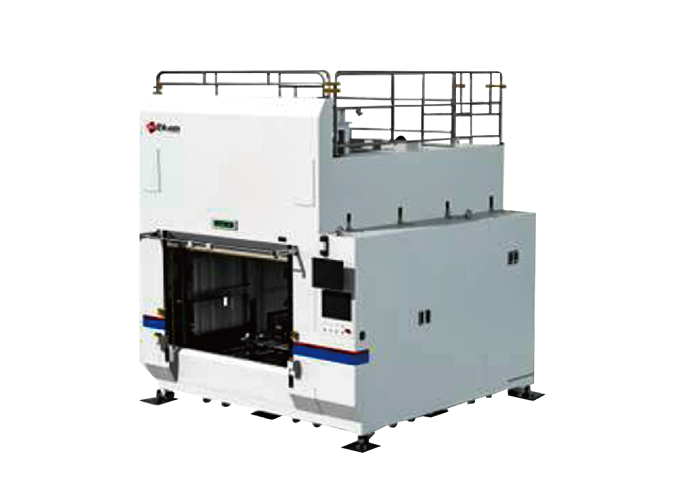

ELPW-LM Series | |
Laser Type | ELCR D Series (100/200/300/500 watt)/ELCR T Series |
Laser Optic Type | Single Beam Optic/ Dual Beam Optic |
Welding Product Size | 600 x 600x 300/ 1,200 x 600x 300 mm |
Welding Quality Function | Vision / Welding Temperature Check |
Beam Delivery Type | Laser Scanning / Process Head |
System Drive Type | Semi-Auto |
JIG Type | ATC(Auto Tool Change) / None |
System Control | PLC & PC Control |
Cooling Type | Forced Air Cooling / Water Cooling |
Dimension | Approx. 3,000x3,000x3,700 mm |
Power | 220/380/440VAC, 50/60Hz, Single Phase / 3 Phase |
Option | ATC, MES, 3D Scanner, ETM, Power meter |
原有工艺比较
区分 | 振动 | 热板 | 激光 | 双束激光 |
焊接品质 | ●● | ●●● | ●●● | ●●●+ |
产品变形 | ●● | ●● | ●● | ●●● |
生产性 | ●● | ●● | ●●● | ●●●+ |
运营费用 | ●● | ●●● | ● | ● |
作业柔性 | ● | ● | ●●● | ●●●+ |
作业环境 | ●● | ● | ●●● | ●●● |
维持保养难度 | ●● | ●●● | ● | ● |
